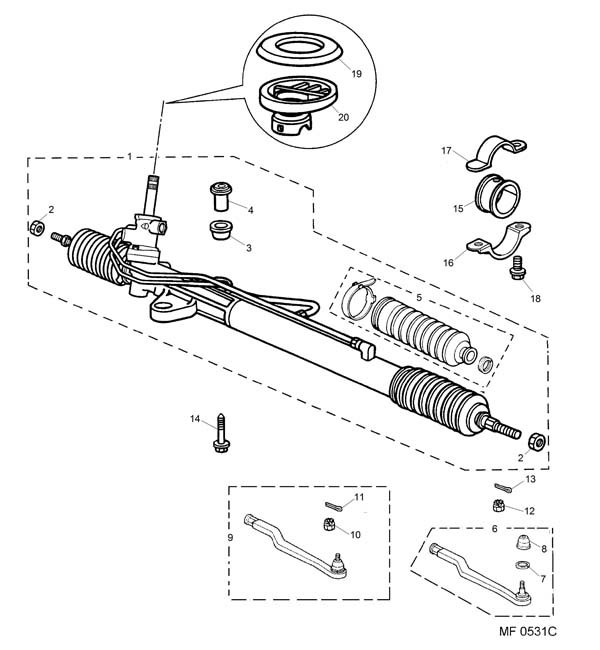

600 (RH), Steering, Power Assisted Steering - From (V) BM246797, Steering Rack

Item
Part Description
Attribute Comment
Qty

1  QEB003384E - Rack assembly power assisted steering   1
1  QEB003384E - Rack assembly power assisted steering   1
1 QEB001183E - Rack assembly power assisted steering   1
1 QEB001183E - Rack assembly power assisted steering   1
1  QEB003384E - Rack assembly power assisted steering   1
1  GSR1184 - Rack assembly power assisted steering NLA   1
2 SYH100040 - Locknut Detail of Assembly   2
3  QJV100020 - Bush steering rack Detail of Assembly   4
4 QJT100020 - Collar steering gear mounting Detail of Assembly   2
5  GRG1154 - Kit-Bellows-power assisted steering Detail of Assembly OR NLA OR pinion end   1
5  QAB101761EVA - Kit-Bellows-power assisted steering Detail of Assembly OR support end   1
6 QGX100140EVA - Joint-ball-outer track rod - RH   1
6 QGX100150EVA - Joint-ball-outer track rod - LH   1
7  RYV10003 - Circlip Detail of Assembly   2
7  RYV10003 - Circlip Detail of Assembly   2
8   BNP2906 - Cover-dust-knuckle joint front - upper Detail of Assembly   2
8   BNP2906 - Cover-dust-knuckle joint front - upper Detail of Assembly   2
9 QGX100140EVA - Joint-ball-outer track rod - RH assembly complete   1
9 QGX100150EVA - Joint-ball-outer track rod - LH assembly complete   1
10 QYH100230 - Nut-hexagonal - 10mm Detail of Assembly   1
11 ALU1539 - Pin-split Detail of Assembly   1
12 QYH100120 - Nut-castle track rod outer ball joint   2
13 ALU1539 - Pin-split   2
14 QYG100290 - Bolt - M10, 55mm   2
15  QJW100100 - Cushion-support end-power assisted steering steering gear mounting To BM264817 1
15 QJW100130 - Cushion-support end-power assisted steering steering gear mounting From BM264818 1
16 QBN100050 - Bracket-clamp rack tube-power assisted steering To BM264817 1
16 QEU100890 - Bracket-clamp rack tube-power assisted steering From BM264818 1
17 QJU100080 - Bracket-clamp support end-power assisted steering   1
18 QYG100270 - Bolt - M10 x 20   2
19 QBL100030 - Seal-steering rack pinion - upper   1
20 QFJ100150 - Seal input shaft-power assisted steering   1
