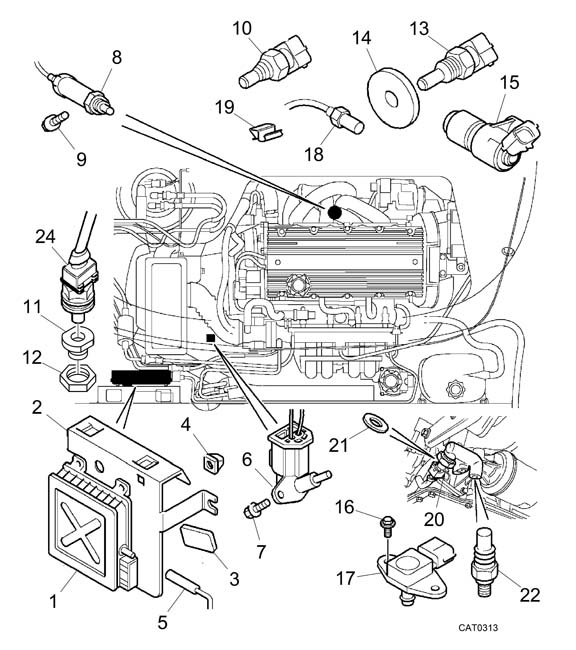

MGF and MG TF, Electrical and Instruments, Ignition & Engine Electrics, Engine Electrics-VVC

Item
Part Description
Attribute Comment
Qty

1   MKC103720 - Electronic control unit engine   1
1   MKC104000 - Electronic control unit engine   1
1   MKC104001 - Electronic control unit engine new   1
1  MKC104001E - Electronic control unit engine exchange   1
1 NNN000100 - Electronic control unit engine   1
1 NNN000160 - Electronic control unit engine   1
2  NNU100410 - Bracket-mounting engine-electric control unit   1
2 NNU100780 - Bracket-mounting engine-electric control unit   1
2  NNU100910 - Bracket-mounting engine-electric control unit   1
3 CRC9383 - Pad-insulation   1
4 GHF1022 - Nut-lokut   3
5  NNP100810 - Pipe-vacuum engine-electric control unit   1
6  NSC100390 - Sensor-crank engine - Lucas, long pin   1
6 NSC100760 - Sensor-crank engine - Lucas   1
7 FS105167 - Screw - M5 x 16 crank sensor fixing   1
8 MHK10006 - Sensor-oxygen multi point injection   1
8 MHK100840 - Sensor-oxygen multi point injection pre & post catalyst   2
9 FS105167 - Screw - M5 x 16   1
10 MEK100061 - Transducer coolant temperature - Brown To YD522572 1
10 MEK000030 - Transducer coolant temperature - Black water temperature From YD522573 1
11 LZN10001 - Insert-screw in   1
12 JRC3106 - Nut   1
13  YCB100370 - Transducer coolant temperature - Black   1
13  YCB100370 - Transducer coolant temperature - Black gauge   1
13  YCB100370 - Transducer coolant temperature - Black gauge   1
14 MDY100040 - Washer-sealing transducer   2
15 NSC100380 - Sensor-camshaft engine - short pin To YD522572 1
15 NSC000010 - Sensor-camshaft engine From YD522573 1
16 FS106127P - Screw-flanged head - M6 x 12 cam sensor to cam carrier   1
16 FS106165 - Screw-flanged head - M6 x 16 MAP sensor   1
17  MHK100490 - Sensor-multi point injection manifold pressure To WD32399 1
17 MHK100600 - Sensor-multi point injection manifold pressure From WD32400, To YD522572 1
17 MHK100820 - Sensor-multi point injection manifold pressure From YD522573 1
18 NSC100320 - Sensor-over temperature warning catalyst   1
19 WYC100340 - Clip   2
20 NUC10003 - Switch-oil pressure engine   1
20 NUC100280 - Switch-oil pressure engine - Brown   1
21 MDY100080 - Washer-sealing oil pressure switch   1
22 YCB100290 - Transducer oil temperature - 170 degrees C   1
22  YCB100350 - Transducer oil temperature   1
22  MEK100160A - Transducer oil temperature oil   1
24 MHK100520 - Sensor-multi point injection ambient air engine bay ambient air   1
900 MAU000070 - Bracket-oxygen sensor   1
901 YMQ001360 - Harness-link blanking plug OR Trophy   1
902 YYC103970 - Clip post cat sensor-ecu brkt   1
902 YYC103550 - Clip oxygen sensor to rear timing cover   1
903 ESR1600A - Clip-cable - 6mm, double cam sensor lead to cam cover   1
904 LYP101690 - Screw-taptite map sensor to inlet manifold   2
905 YQR101320 - Clip-edge harness   1
906 NNK10001 - Sensor-air inlet temperature engine-electric control unit   1
